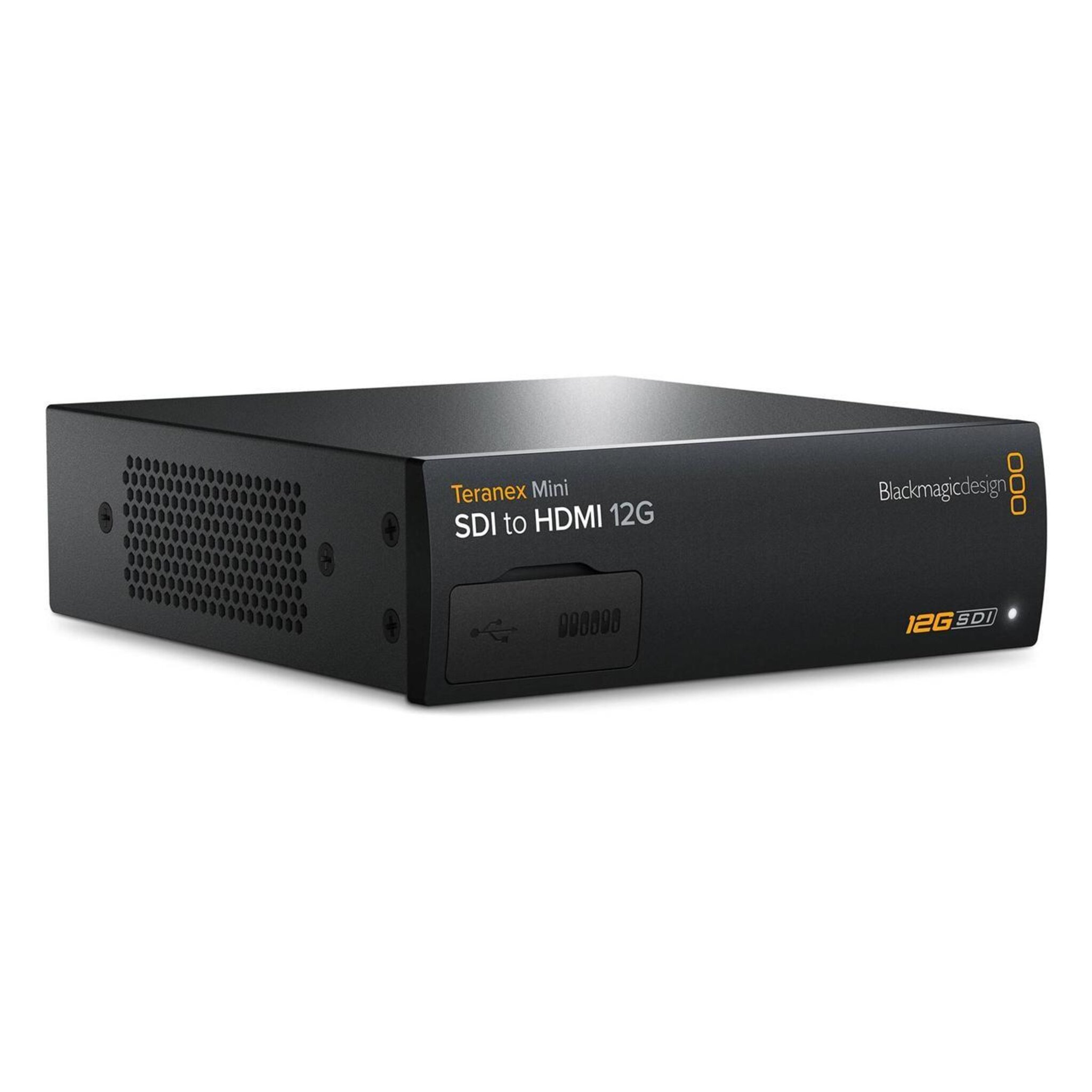

Blackmagic CONVNTRM/AA/SDIH Design Teranex Mini
Introducing Teranex Mini the next generation 12G-SDI converters with award winning Teranex quality and support for all SD HD and Ultra HD formats up to 2160p60! All Teranex Minis include an internal AC power supply professional XLR analog and AES/EBU audio connections and an ethernet connection for remote management and PoE alternate power! Teranex Mini features a user upgradable front panel that includes a color display and user controls so you can quickly monitor video and change settings right from the front of the converter! You get all of the same great features of regular mini converters and so much more.
Use Anywhere. The world’s most versatile converters.
The all new Teranex Mini converters make building facilities and supporting all different types of video equipment easier than ever before. Teranex Mini is perfect for broadcast installations because they can be rack mounted and the optional front panel lets you see what’s being converted on the screen! They can even be remote managed over ethernet. Their compact size makes them great for portable racks at live events or in broadcast trucks plus they have professional XLR audio connections for connecting to mixers and other audio gear! You can even use them in editing and color grading suites to drive big screen displays and projectors.
Reinventing the Mini Converter. The first mini converter you don’t have to hide.

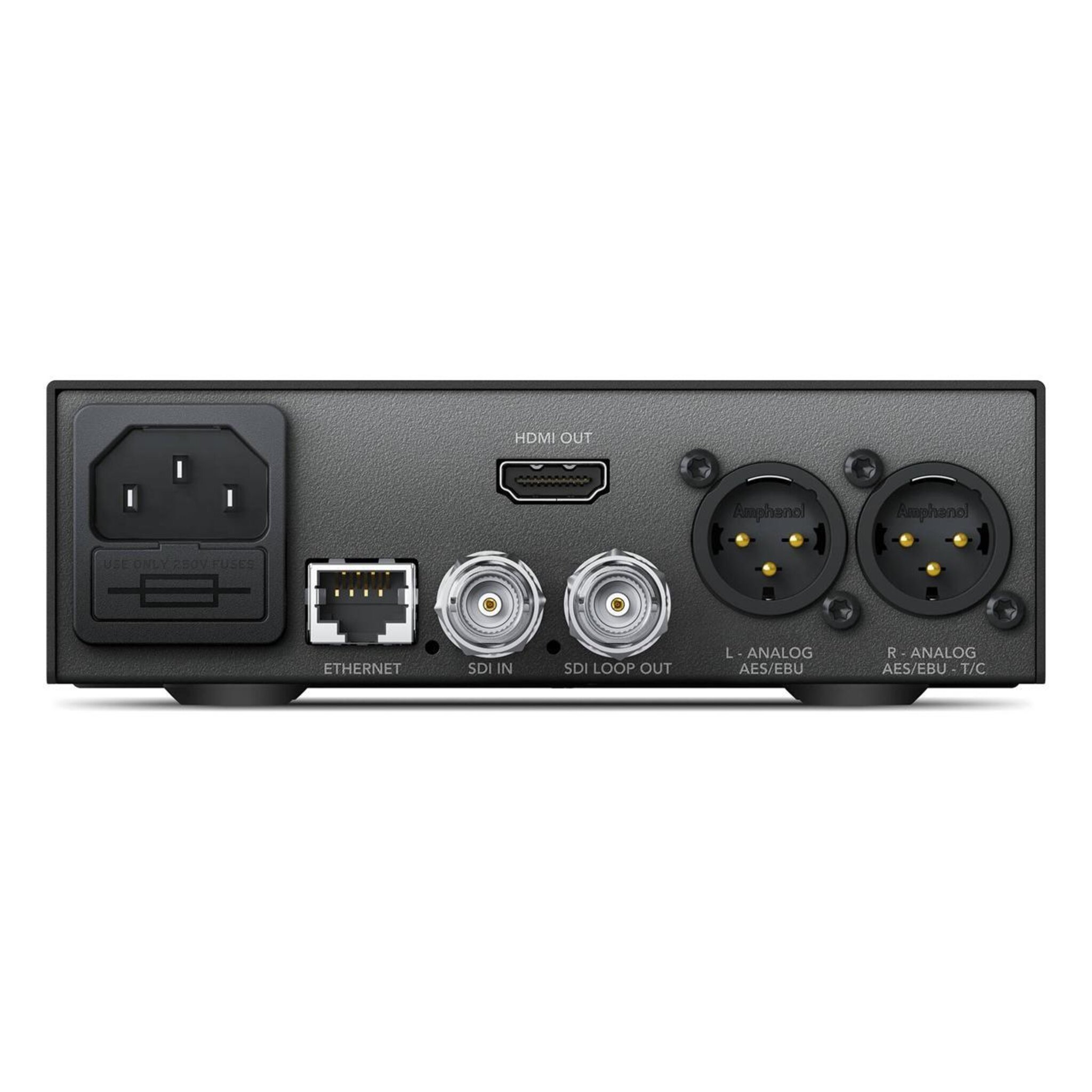

Teranex Minis are so small that you can use them like regular mini converters such as hiding them in cable ducts behind equipment and attached to televisions for monitoring. Teranex Mini’s new flexible design lets you use them on the desktop where you can see them or rack mount them in larger broadcast systems. Unlike regular mini converters you get full size professional XLR audio connections built into the converters plus each converter has an ethernet connection so they can be administered remotely. You get mini switches so you can change settings instantly or when you’re doing mission critical work you can add the optional front panel to see exactly what you’re converting.
Rack Mountable. The world's first 12G-SDI rack mount converters.
Card based rack converters are expensive cannot handle high SDI speeds such as 12G-SDI and you have to buy an entire rack chassis even if you only want to install one converter. Teranex Minis can be rack mounted in combinations of one or more and you can take them out and use them non rack mounted whenever you need! You get built in AC power and ethernet on every converter so there’s no single point of failure. Unlike card based converters you can walk up and change settings from the front panel monitor the video going through each converter and you can also manage them remotely over ethernet! Because they’re so small you can mount them in the front or the rear of an equipment rack or road case.
Sistema operativo compatibile
|
Mac OS X \nWindows
|
Colore del prodotto
|
Nero
|
Risoluzione supportata
|
1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080PsF25, 1920 x 1080Ps30, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60\n\n2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25\n\n3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
|
Intervallo temperatura di funzionamento
|
0 - 40 °C
|
Intervallo di temperatura
|
-20 - 60 °C
|
Range di umidità di funzionamento
|
0 - 90%
|
Interfaccia host
|
SDI
|
interfaccia output
|
HDMI
|
Collegamento PC
|
Sì
|
Tipo di connettore
|
USB, RJ-45
|
Peso
|
599 g
|
Larghezza
|
140 mm
|
Altezza
|
44,5 mm
|
Profondità
|
170 mm
|
Adattatore esterno
|
|
Voltaggio di ingresso
|
90 - 240 V
|
Consumi
|
15 W
|
Alimentazione USB
|
|
Tensione di esercizio
|
48 V
|
Formato video analogico
|
NTSC,PAL
|
Modalità video supportate
|
1080i,1080p,2160p,720p
|
Risoluzione massima video
|
4096 x 2160 Pixel
|
Ampiezza banda
|
12 Gbit/s
|
